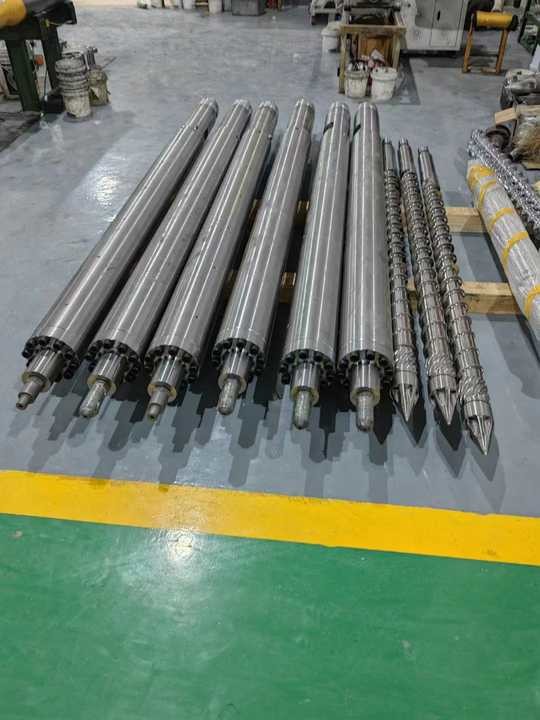

Customized nitride cylinder screws injection bimetallic single screw barrel for injection molding machine
The function of the screw of the injection molding machine is to complete the conveying, compacting, melting, stirring and pressurizing of the plastic through the rotation of the screw in the barrel. The structure of the barrel of the injection molding machine is a round tube with a blanking opening in the middle. The barrel contains the screw, which rotates inside the barrel
The barrel screw of the injection molding machine is an important part of the injection molding machine, which has the advantages of high yield, low unit consumption, strong plasticizing capacity, wear resistance, corrosion resistance and long service life.
| Hardness after hardening& tempering | HB240-280 |
| Nitrided hardness | HV850-1050 |
| Nitrided case depth | 0.45-0.7mm |
| Nitrided brittleness | less than grade 2 |
| Surface roughness | Ra 0.4 |
| Screw straightness | 0.015mm |
| Surface chromium-plating's hardness after
nitriding | ≥900HB |
| chromium-plating depth | 0.03-0.10mm |
| Alloy hardness | HRC50-65 |
| Alloy depth | 0.8-2.0mm |
| Materials& processes | Quality 38CrMoAlA
GH113 HC-276
CW6Mo5Cr4V2
9Cr18MoV
SKD61
Quality powder metallurgy raw materials
Advanced nitriding process
Vacuum ionic hardening
Corrosion&abrasion resistance bimetal spraying process |
Zhoushan Jialong Screw Manufacture Co.,Ltd is professional manufacture of screw barrel for plastic & rubber machinery. Including conical twin screw and barrel, parallel twin screw and barrel ,planetary screw and barrel, single screw and barrel for extruder and injection moulding machine. Especially, conical twin screw and barrel with SKD inlay sleeve has better use life.
Profession experience on designing we have 20 years design experiences,we can provide better design according customers need,and also provide solutions to help customers solve extruding and injection moulding problems.omers!
JALONG: Professional experience on processing, we can supply nitrided, chrome plating,stainless steel,bimetallic and surface spraying technology treatment for different demands.
JIALONG SCREW devote on high quality screw barrel and professional rapid service to bring more benefit to cust.
