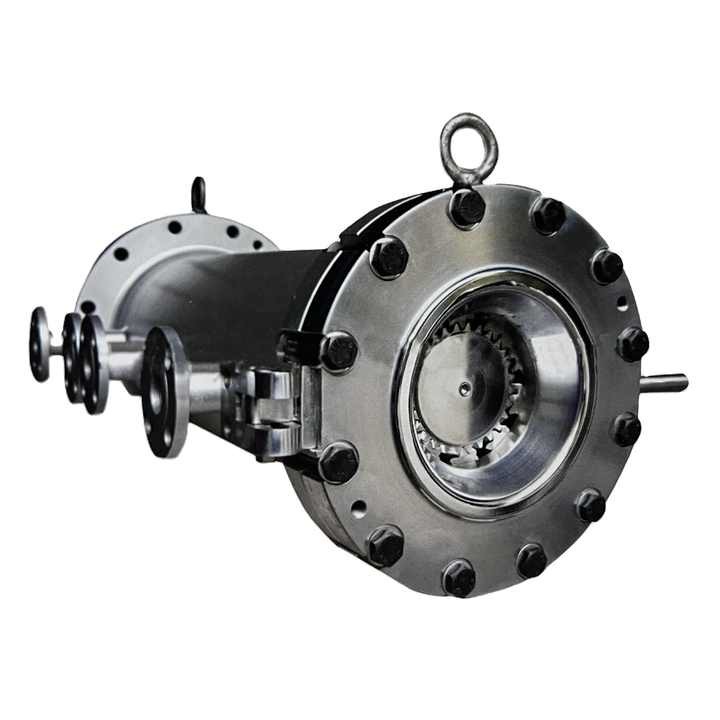

New design Automatic Extruder Planetary screw and barrel for plastic extruder machine
As a new type of extruder, planetary screw extruder is more and more widely used in PVC material production lines. Compared with the general conical twin screw extruder, the planetary screw extruder has the advantages of high yield, high efficiency and high plasticization.
| Material | 1)W6Mo5Cr4v2 2)38CrMoAIA(JIS SACM 645) 3)42CrMo(AISI 4140) 4)SKD61 5)S45C |
| The planetary screw barrel is mainly used for heat sensitive materials, such as processing rigid PVC. In the calender production line of PVC transparent chip, adopt planetary screw barrel to plastify and mixing raw materials for calender. It can make all melting materials, accessory ingredient and modifier uniformly mixing and dispersing. It has features of good plasticization self-cleaning, high productivity, long using life and so on. |
| Hardness after hardening& tempering | HB240-280 |
| Nitrided hardness | HV850-1050 |
| Nitrided case depth | 0.45-0.7mm |
| Nitrided brittleness | less than grade 2 |
| Surface roughness | Ra 0.4 |
| Screw straightness | 0.015mm |
| Surface chromium-plating's hardness after
nitriding | ≥900HB |
| chromium-plating depth | 0.03-0.10mm |
| Alloy hardness | HRC50-65 |
| Alloy depth | 0.8-2.0mm |
| Materials& processes | Quality 38CrMoAlA
GH113 HC-276
CW6Mo5Cr4V2
9Cr18MoV
SKD61
Quality powder metallurgy raw materials
Advanced nitriding process
Vacuum ionic hardening
Corrosion&abrasion resistance bimetal spraying process |
Zhoushan Jialong Screw Manufacture Co.,Ltd is professional manufacture of screw barrel for plastic & rubber machinery. Including conical twin screw and barrel, parallel twin screw and barrel ,planetary screw and barrel, single screw and barrel for extruder and injection moulding machine. Especially, conical twin screw and barrel with SKD inlay sleeve has better use life.
Profession experience on designing we have 20 years design experiences,we can provide better design according customers need,and also provide solutions to help customers solve extruding and injection moulding problems.omers!
JALONG: Professional experience on processing, we can supply nitrided, chrome plating,stainless steel,bimetallic and surface spraying technology treatment for different demands.
JIALONG SCREW devote on high quality screw barrel and professional rapid service to bring more benefit to cust.
FAQ
01
Q: Are you trading company or manufacturer ?
A: We starts from the foundry factory over more than 20 years. located in zhoushan City, zhejiang Province, China, close to ningbo Port.and ningbo Airport. It is a manufacturer
integrating production and processing. We have offices in zhoushan jintang respectively.
Customers are welcome to visit and inspect the factory.
02
Q: Do you support OEM and ODM?
A: Yes! We have the top design teams in China. You just send us the drawings of the
product and our design team will do it.Please trust our expertise !
03
Q:Why choose us?
A: In this industry, we have a better service and quality management system, I believe you will choose professional, and the same quality to provide you with a better price of us.
04
Q:Do you produce them all?
A: Yes, we specialize in the production of all products are their own production.
05
Q:How to guarantee the quality problem?
A: We have a professional quality inspection department, on-site inspection of the production process, layer upon layer of strict control and inspection of products before delivery,absolutely eliminate defective products.
06
Q:What's the minimum quantity of an order?
A: We are interested in offering a quotation based on your total combined order preferences with freight delivered to your location. Please advise and thank you for your
interest!
07
Q:How do I receive the goods?
A: We have professional transport agents, which can deliver goods to various ports, FOB, CIF, DHL, Federal Express, etc. Please provide detailed address, we can also provide
door-to-door service for you.
08
Q: How long is your delivery time?
A:It is usually 20-35 days. Others calculate the time according to the quantity of your
order.
